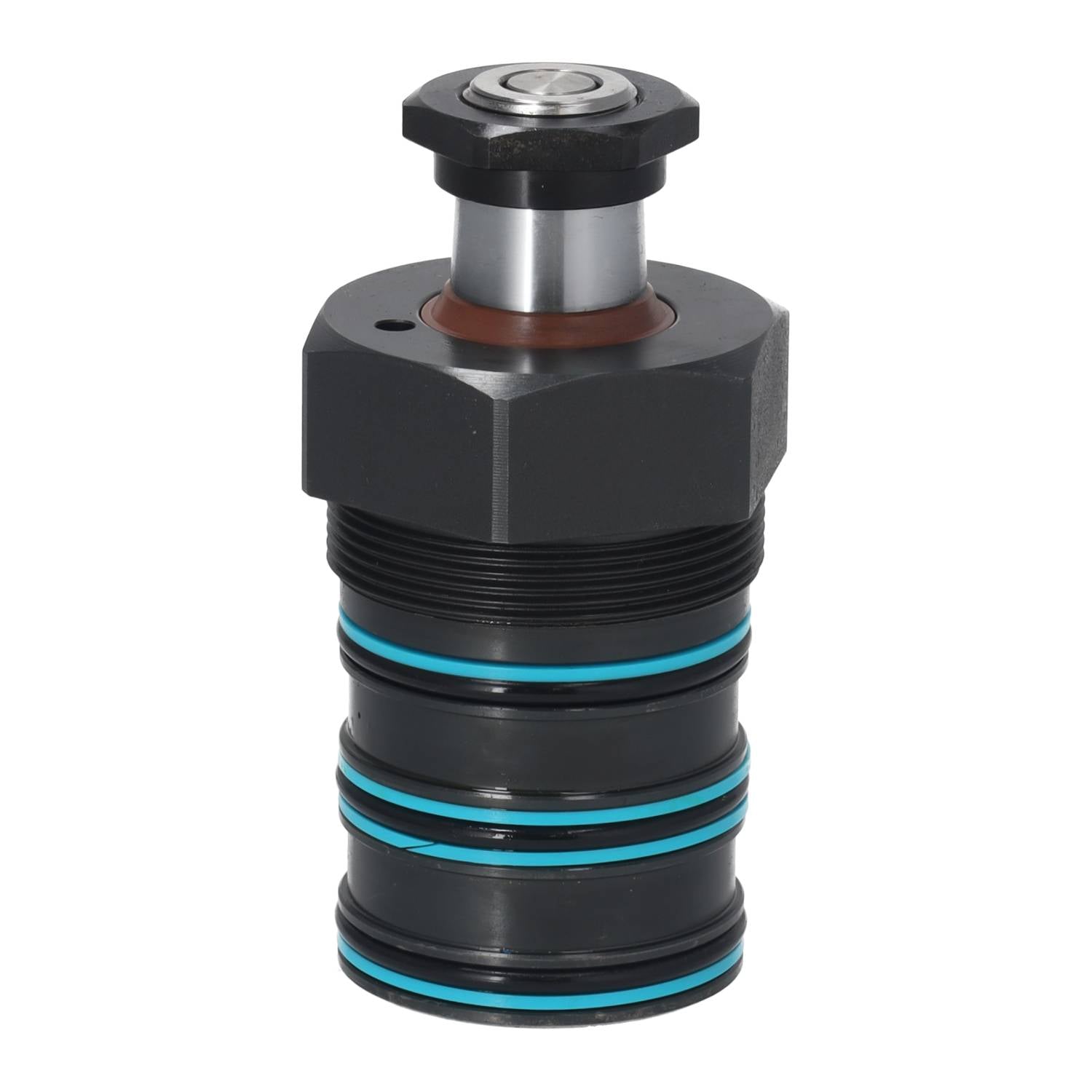

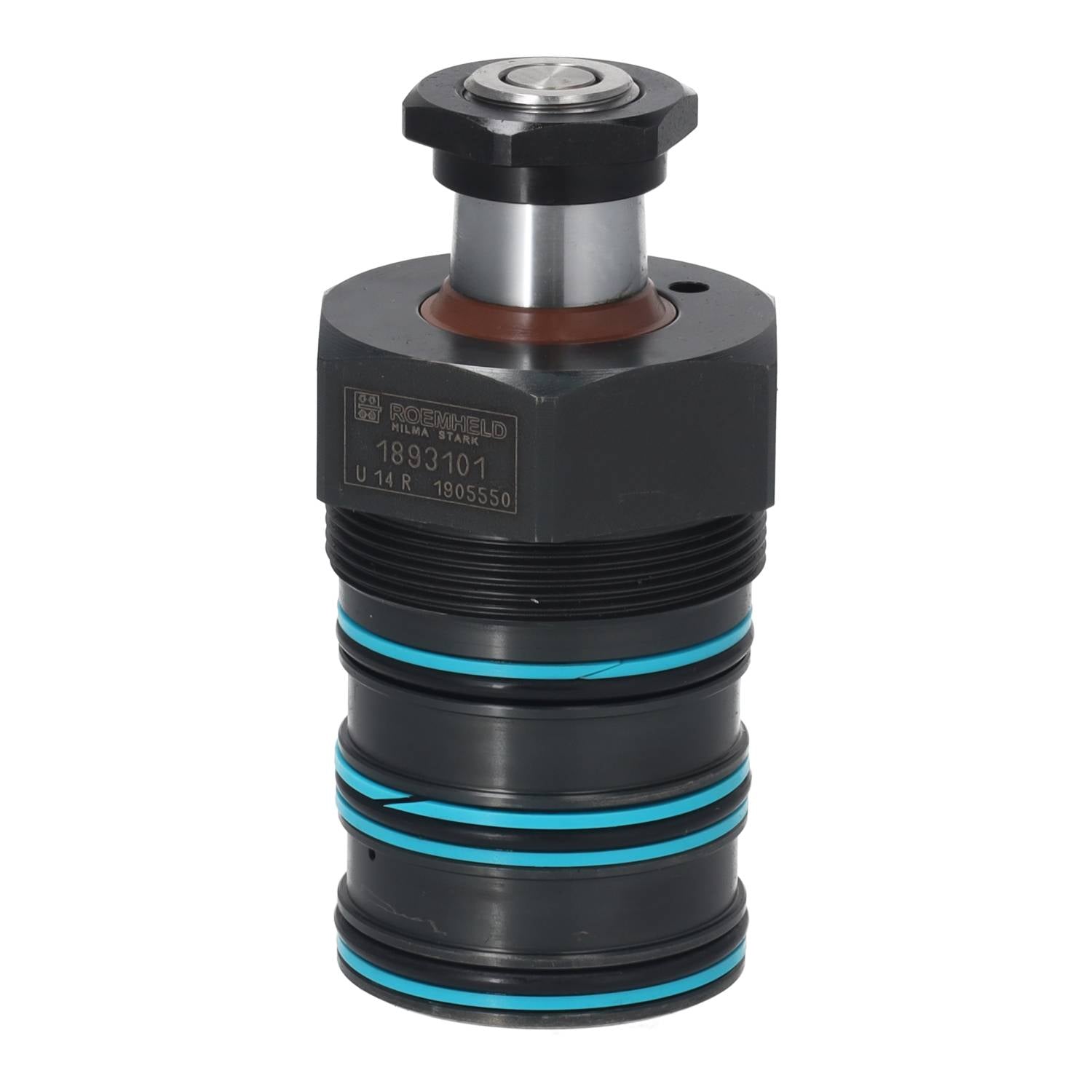

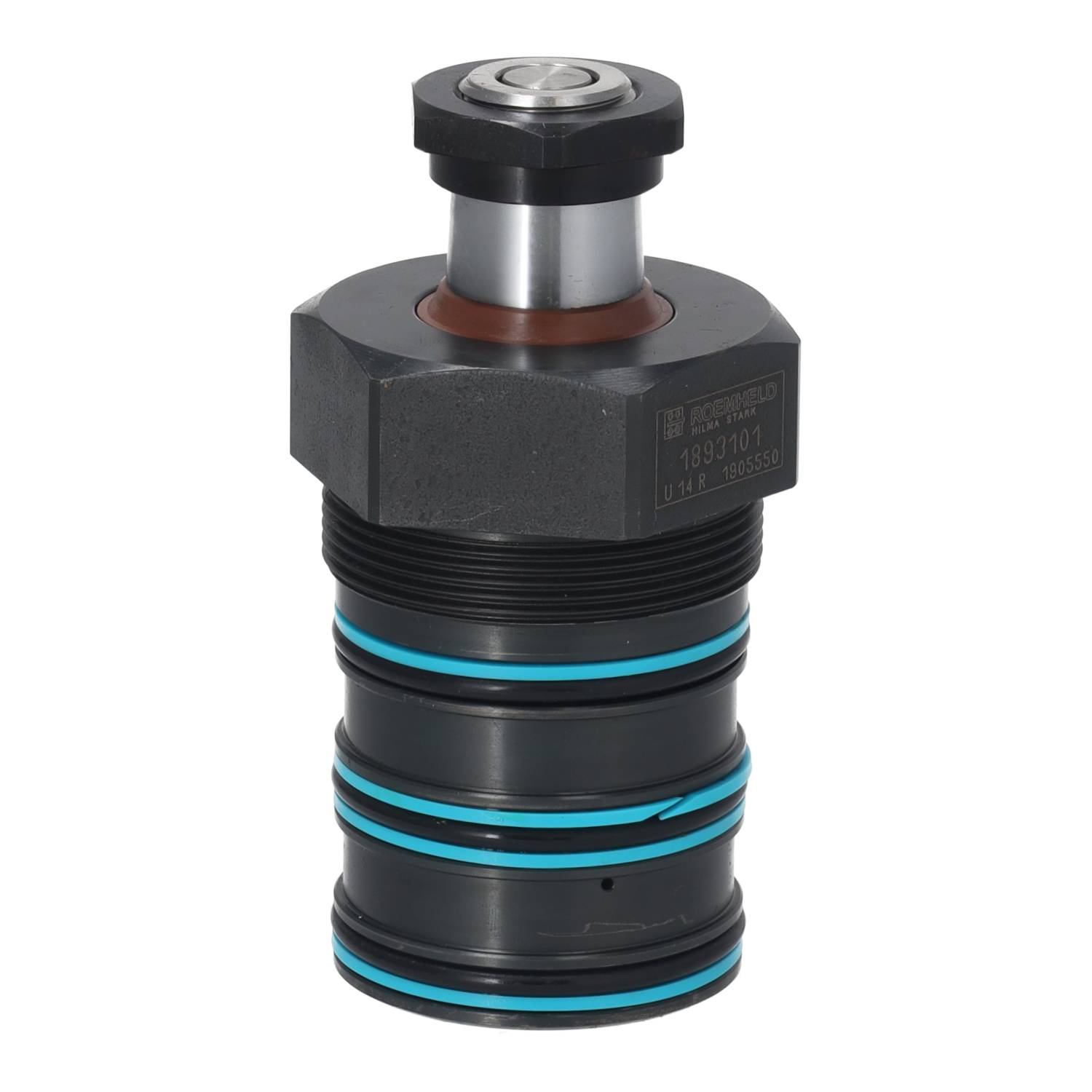

Product Name: Swing Clamp with Overload Protection
Design: Screw-in type, double-acting
Order Number: 1893101
Housing Type: Screw-in design
Function: Double-acting
Swing Direction: Right
Swing Angle: 90°
Total Stroke: 18 mm
Clamping Stroke: 11 mm
Swing Stroke: 7 mm
Piston Diameter: 25 mm
Rod Diameter: 20 mm
Clamping Arm Mount: Taper 1:10
Max Clamping Force: 7 kN
Max Tensile Force: 8.84 kN
Max Operating Pressure: 500 bar
Pressure Range: High pressure
Seals: NBR
Wiper Material: FKM
Metal Wiper: Without
Hydraulic Connections: For drilled channels
Swing Mechanism: Standard
Overload Protection: Included
Position Monitoring: None
Continuous Piston Rod: None
Catalog Sheet: B1.892
