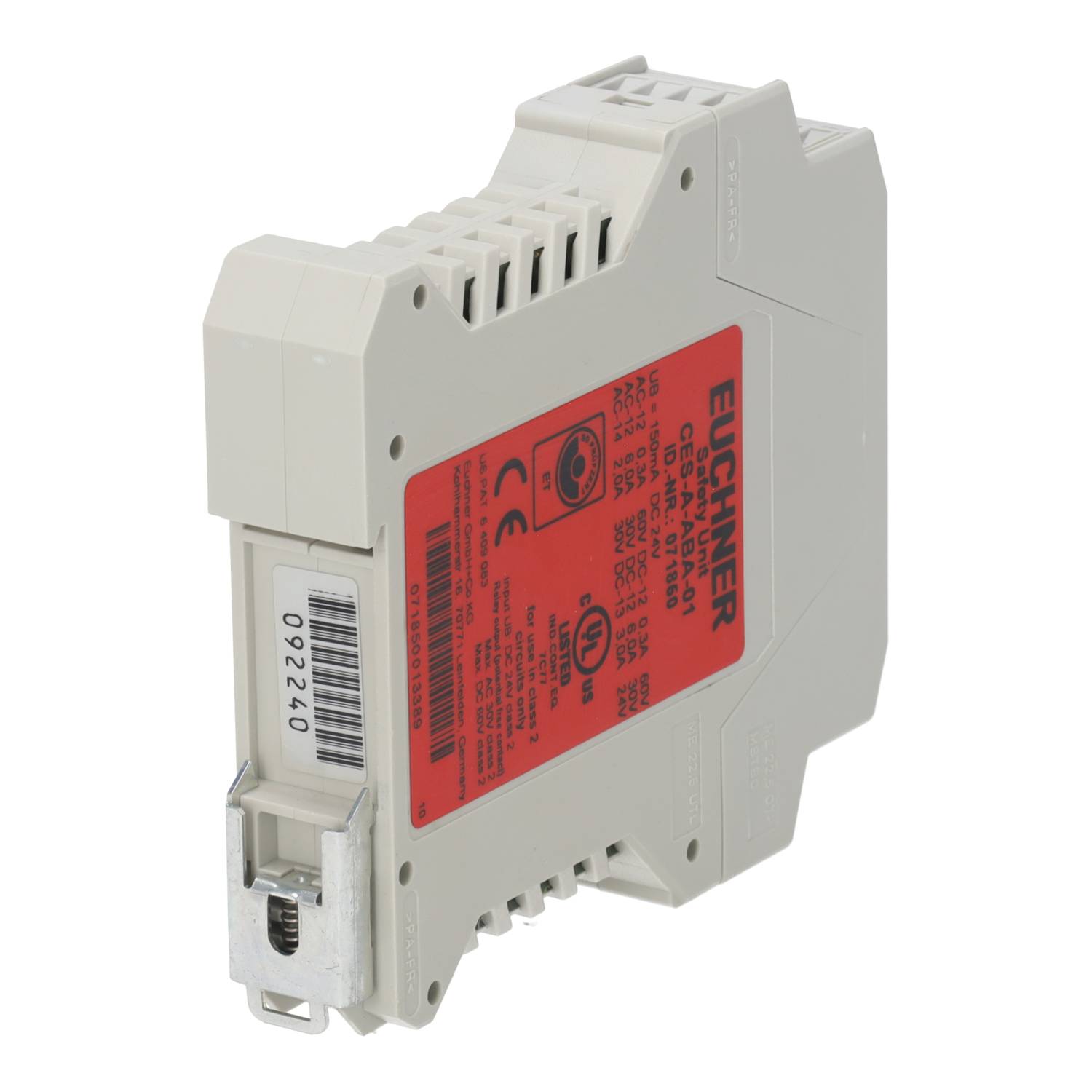

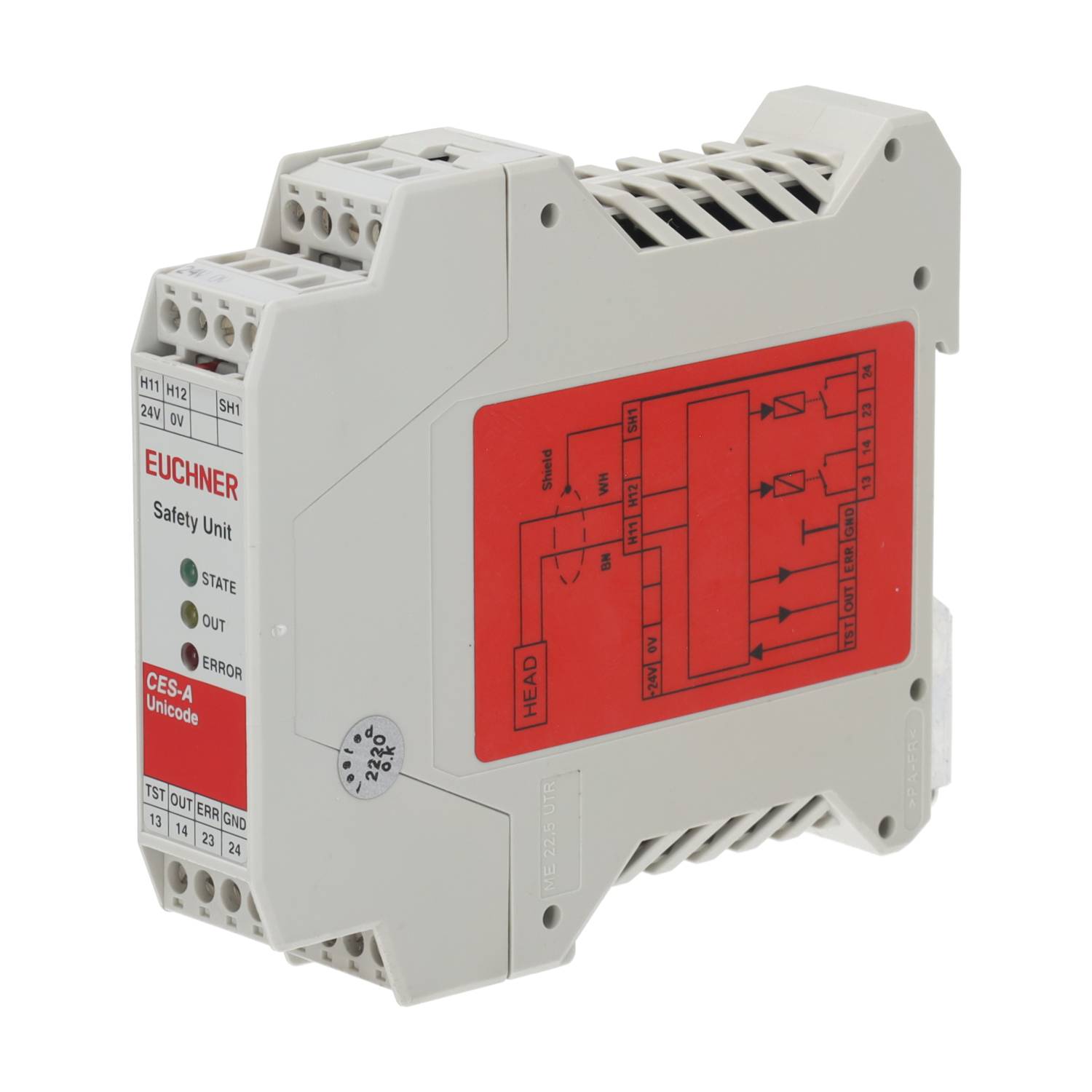

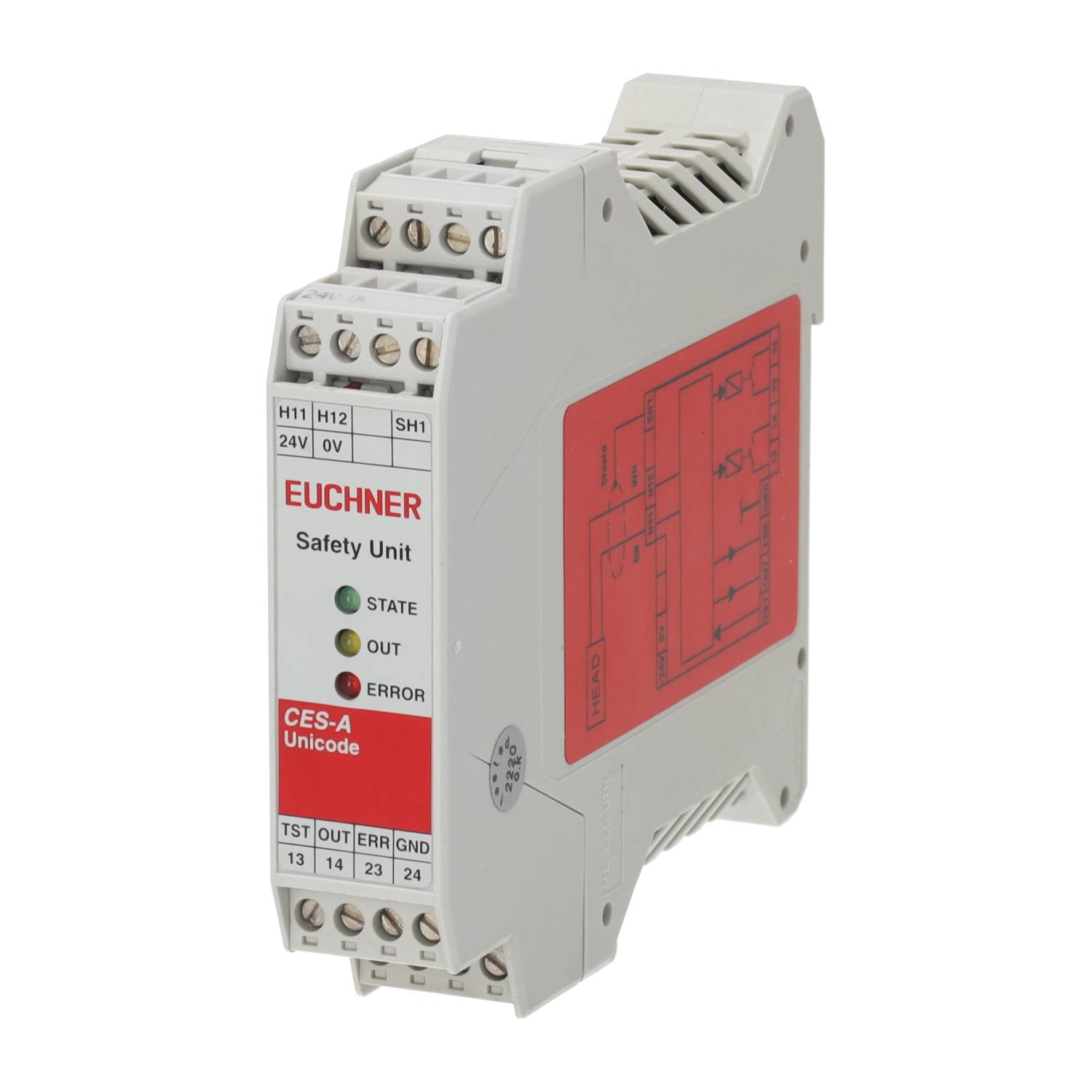

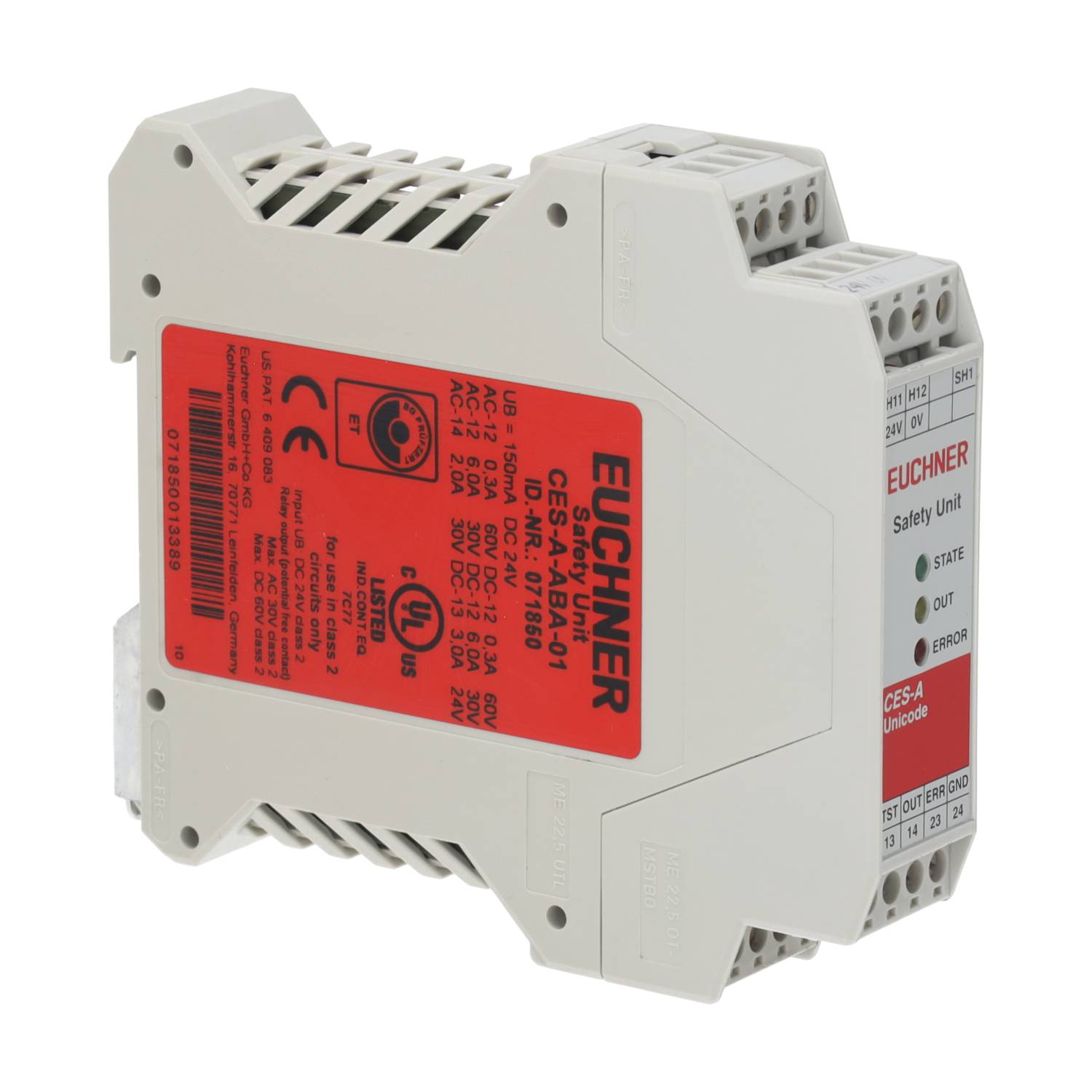

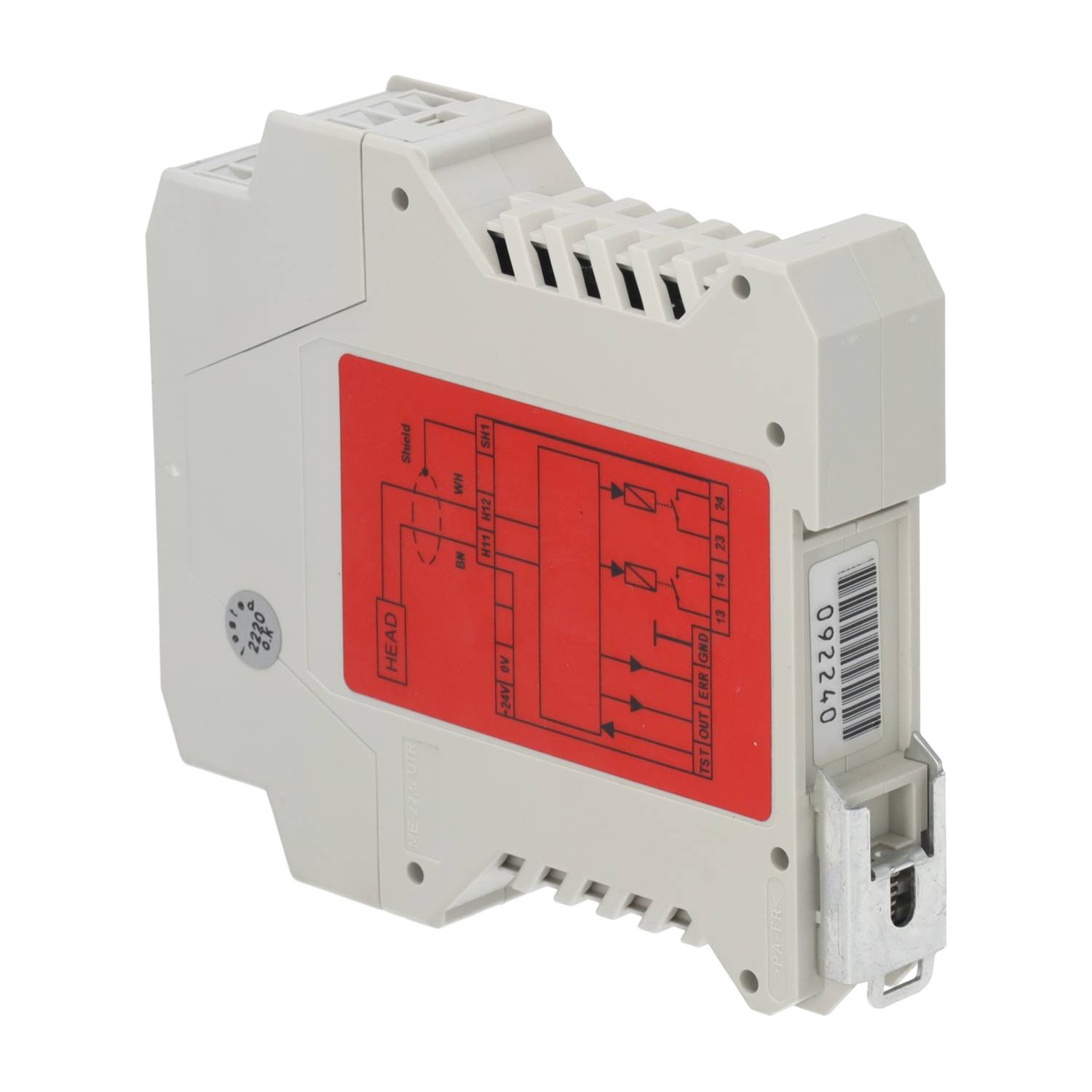

CES-A-ABA-01 (071850)
Free shipping from 49€
Worldwide shipping
- Manufacturer: EUCHNER
- Model: CES-A-ABA-01
- Part Number: 071850
- Device Type: Evaluation unit for coded non-contact safety systems
- Function: Evaluation unit for a CES safety read head for guard door and position monitoring
- Supply Voltage: 21–27 V DC (24 V DC nominal)
- Current Consumption: approx. 150 mA (without load currents)
- Compatible Sensors: 1 CES safety read head
- Safety Outputs: 2 internally monitored potential-free safety relay outputs
- Diagnostic Outputs: ERR diagnostic output and OUT door status output, PNP, max. 20 mA
- Switching Capacity: Up to 6 A at 30 V AC/DC, 3 A at 24 V DC (DC-13)
- Response Time: max. 180 ms
- Start-up Delay: max. 3 s
- Switching Frequency: max. 1 Hz
- Mechanical Life: 10 million switching cycles
- Connection Type: Coded plug-in screw terminals (0.25–2.5 mm²)
- Mounting: 35 mm DIN rail (EN IEC 60715)
- Protection Rating: IP20
- Operating Temperature: −20 to +55 °C
- Storage Temperature: −25 to +70 °C
- Humidity: max. 80% RH, non-condensing
- Safety Level: PL e, Category 3 according to EN ISO 13849-1
- Approvals: CE, cULus Listed, CCC
- Typical Applications: Guard door monitoring, safety interlocking systems and machine safety using EUCHNER CES safety sensors.
