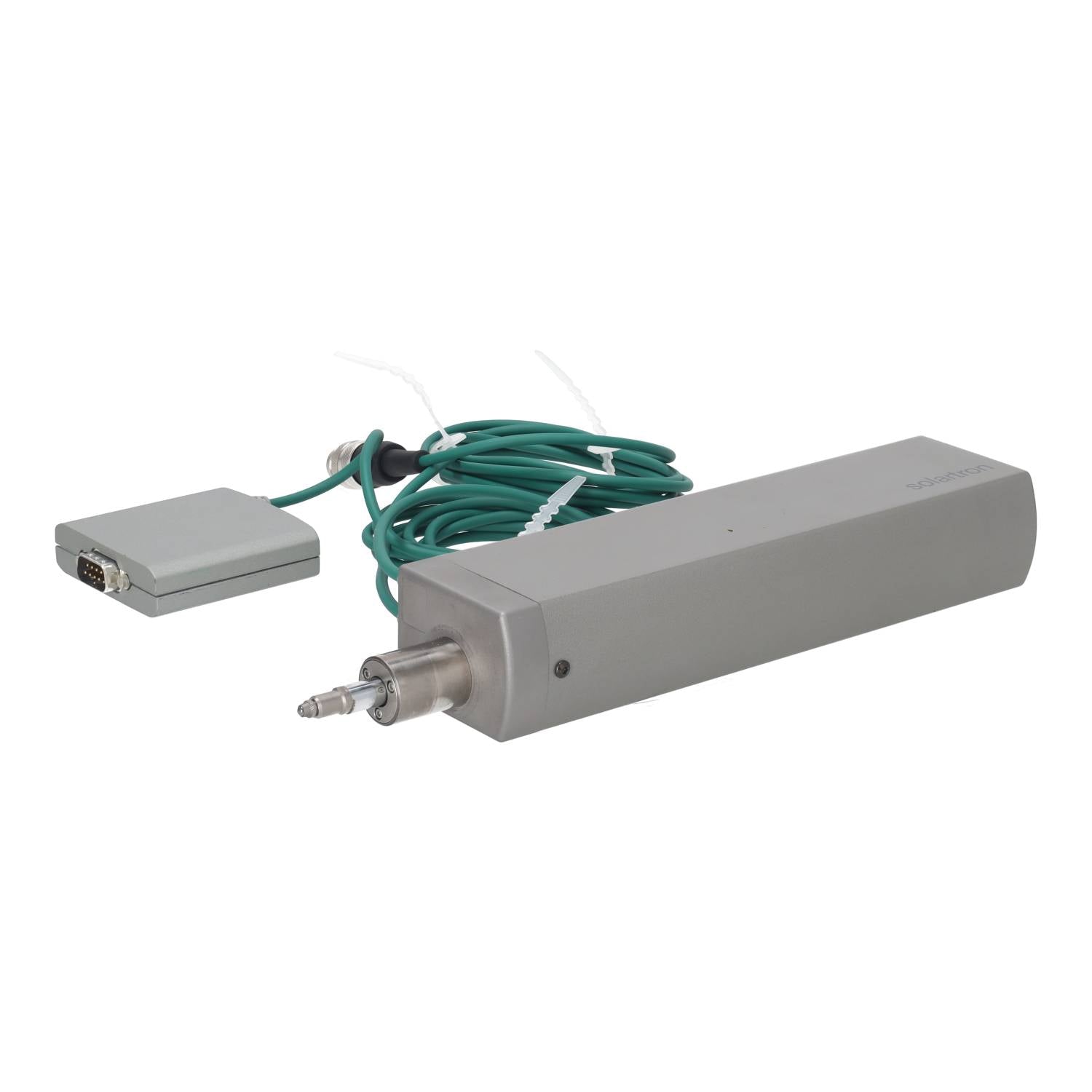

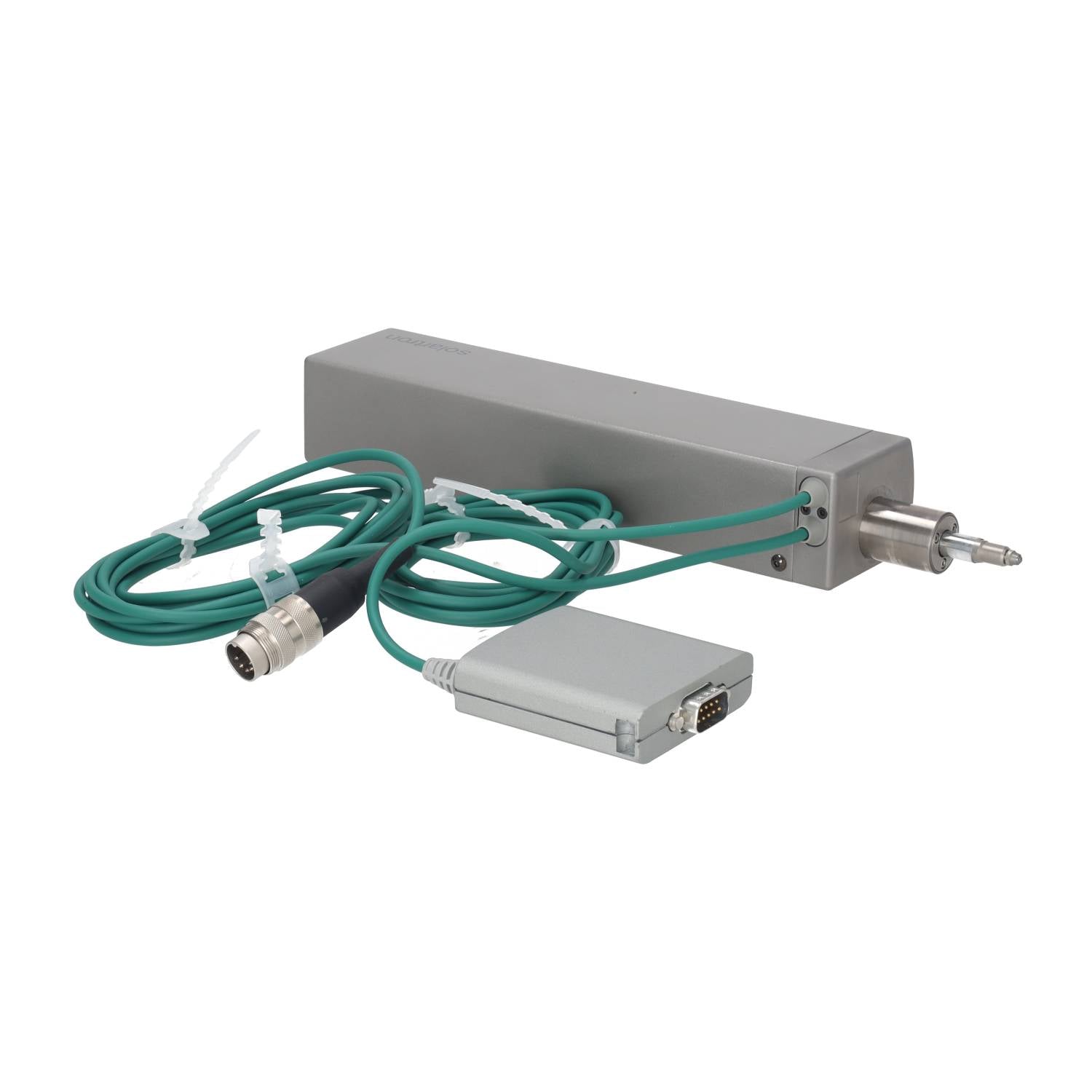

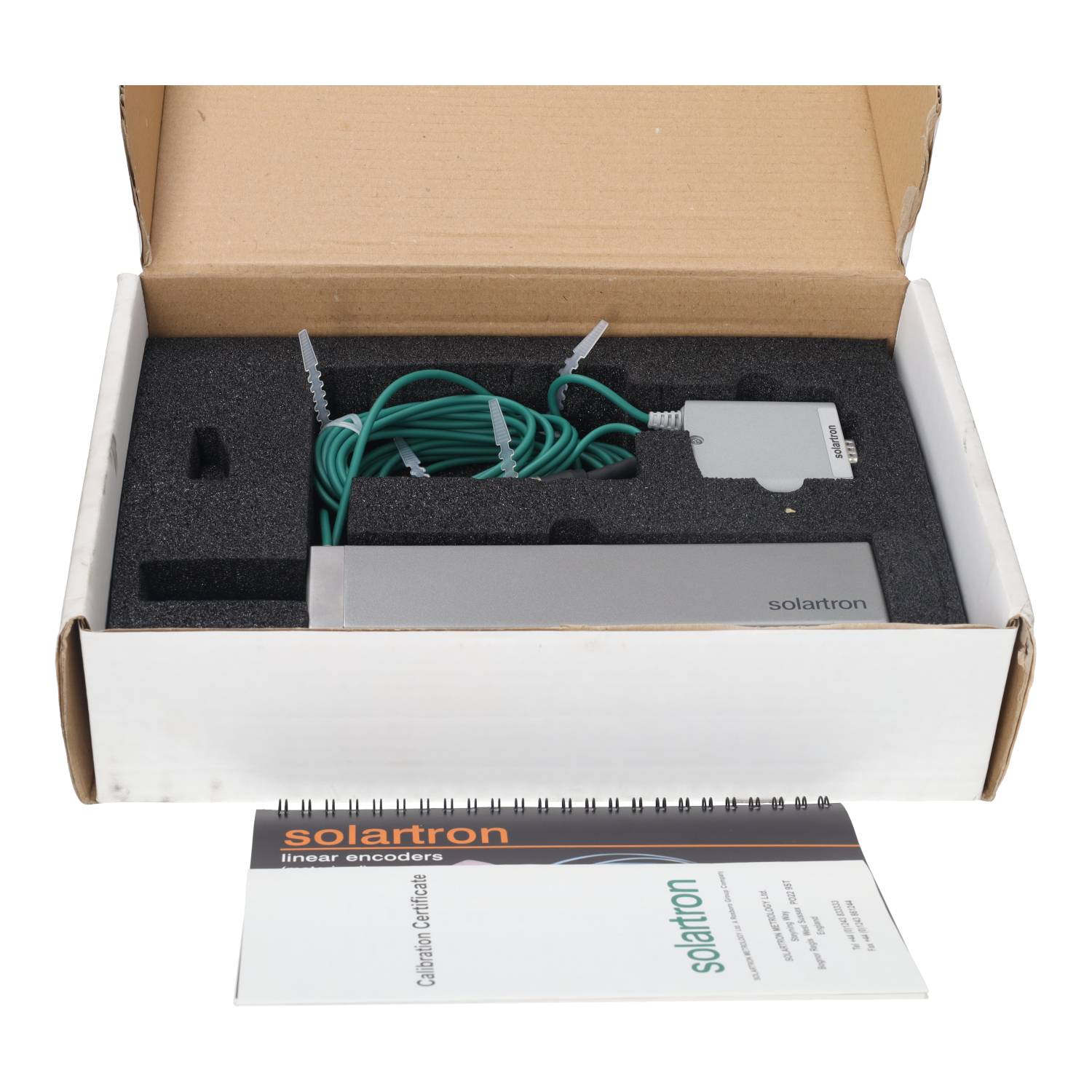

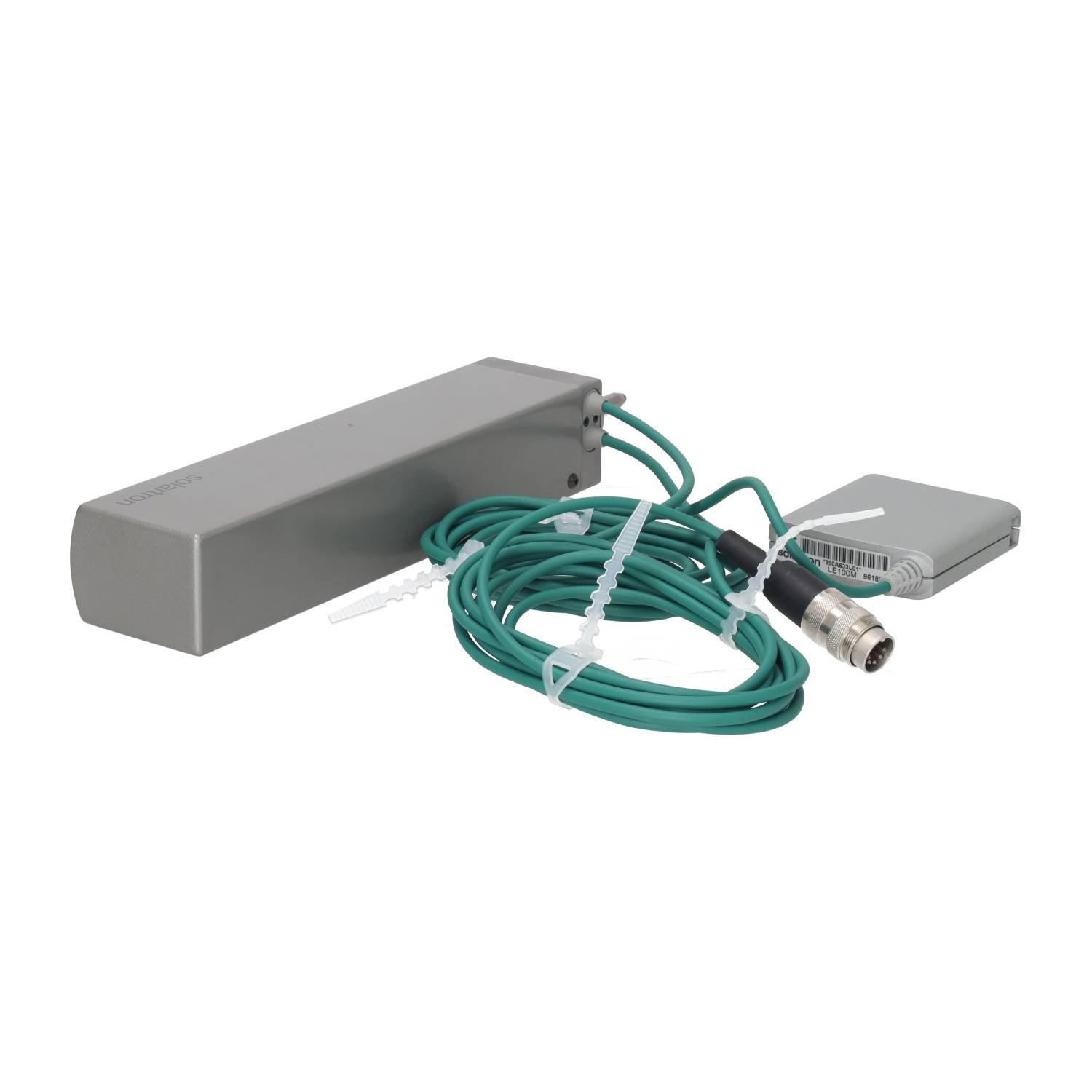

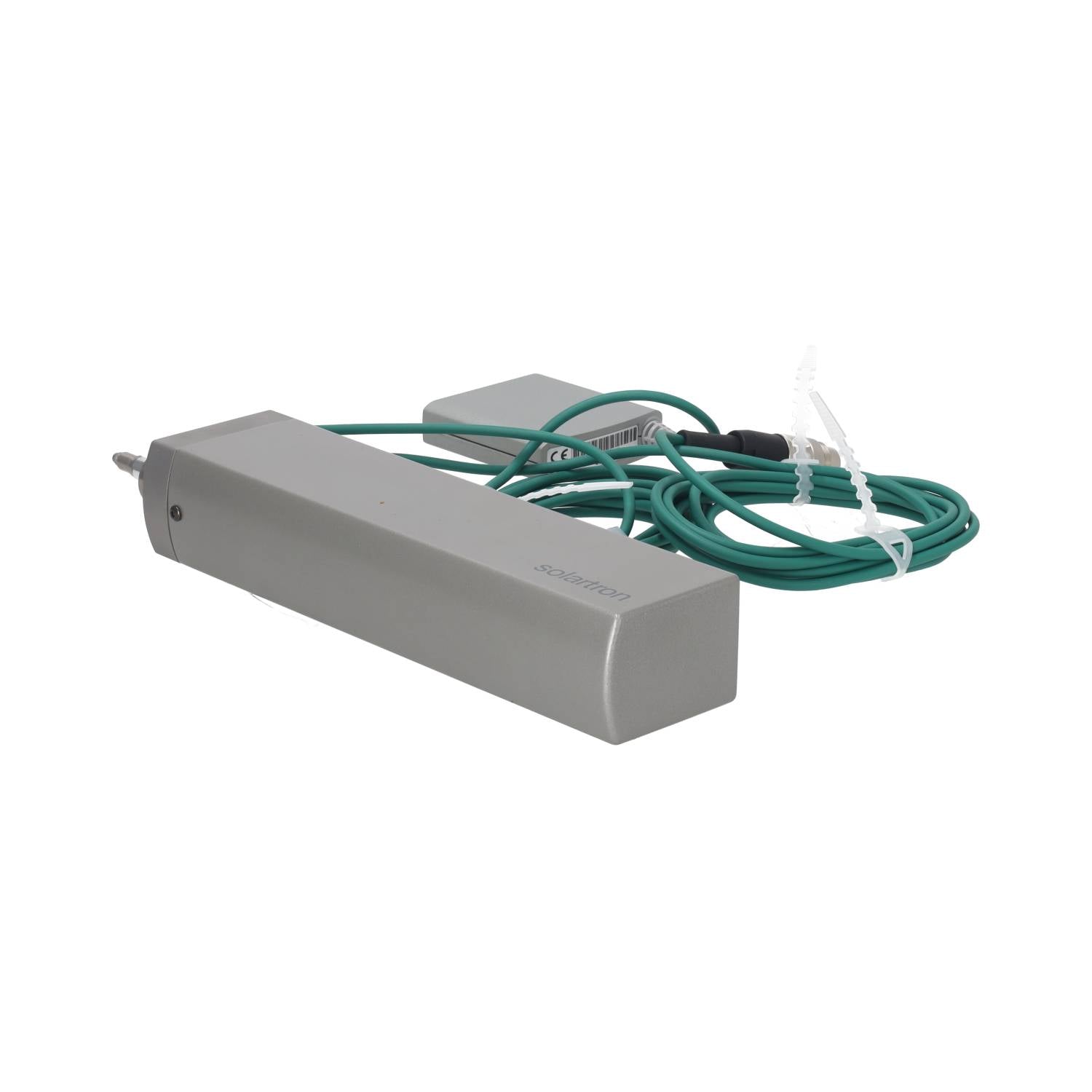

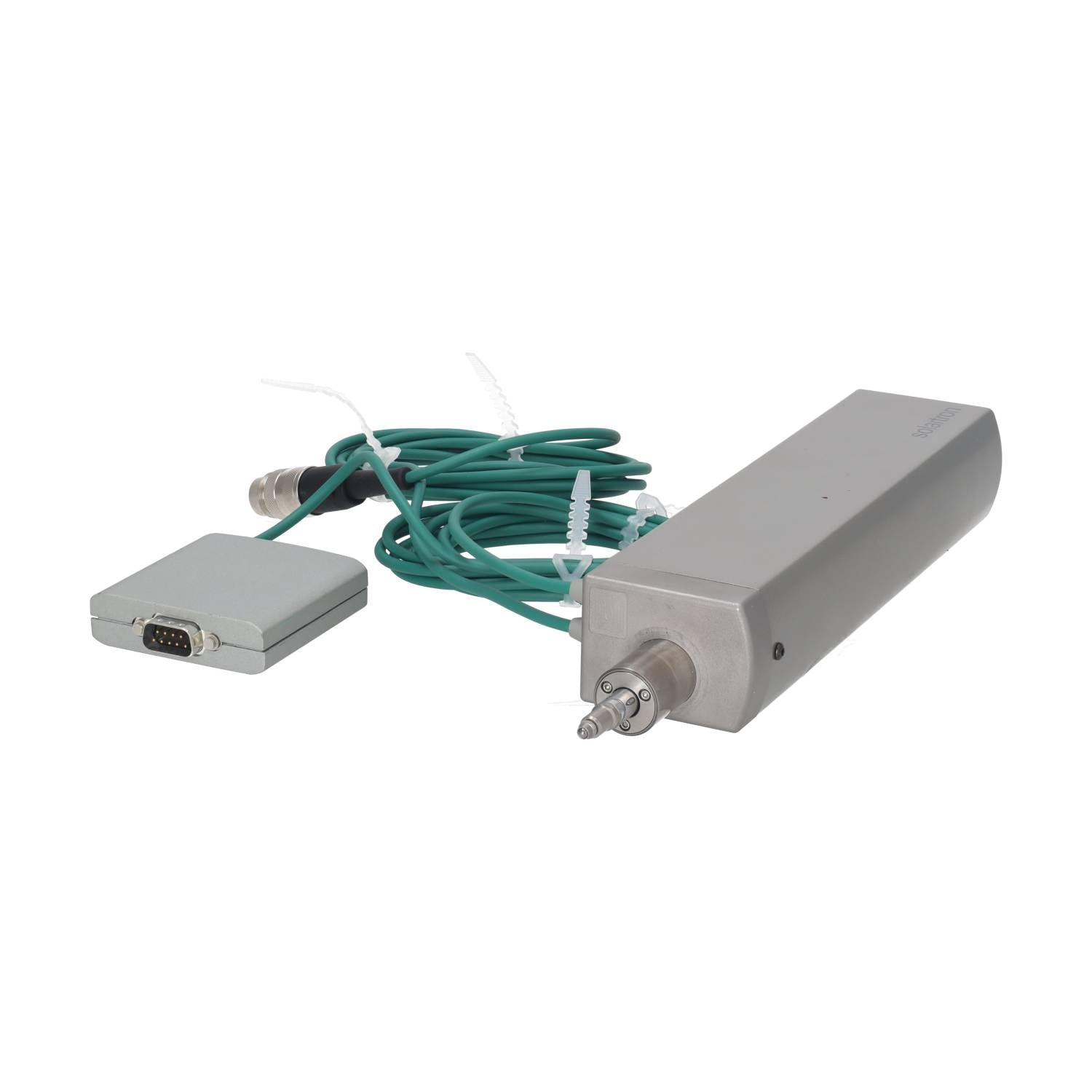

LE/100/M (961850)
Free shipping from 49€
worldwide shipping
Model: LE/100/M
Stroke: 101.6 mm
Resolution: 0.05 µm
Accuracy: ±1 µm
Reference Temperature: 20 °C
Slew Rate: 0.5 m/s
Operating Orientation: vertical up/down, horizontal
Weight: 0.9 kg
Measuring Force: 0.5–0.9 N
Max Side Load: 100 g
Cable Length: 2 m
Operating Temperature: 0–50 °C
Storage Temperature: –20–70 °C
Probe Protection: IP40
Electronics Protection: IP53
Mount Diameter: 20 mm g6/H7
Tip Thread: M2.5 × 6 mm
Supply Voltage: 5 V DC ± 0.25 V
Current Consumption: 60 mA
Communication: 9600 baud / 187.5 kbaud
Protocol: Orbit Network Protocol
Max Measurement Rate: 1000 readings/s
EMC: EN50081-1 & EN50082-1
